C11000 Seamless Tube Size : 4 to 150mm
C11000 Copper Light Drawn Tube Length: Cut Length, Single Random &
Double Random
UNS C11000 Light Annealed Tube Standards : ASME SB68, ASTM B111
ASTM B152 C11000 Bright Annealed Tube Types: Full Annealed Tube, Light Annealed,
Light Drawn, Seamless
Table of Content
C11000 Copper Tube Specification
C11000 Copper Seamless Tube Size
Copper Alloy C11000 Hard Drawn Tubes Shape
UNS C11000 Light Annealed Tube Standards
ASTM B152 C11000 Bright Annealed Tube Thickness
C11000 H02 Annealed Tube Temper
UNS C11000 Copper Full Annealed Tube
Types
C11000 Copper Light Drawn Tube Length
C11000 Seamless Tube Uses
C11000 Copper Light Drawn Tube Manufacturing Method
UNS C11000 Seamless Tube Size Chart
| Nominal Outside Diameter(O.D) (mm) | Wall thickness (mm) |
|---|---|
| 4.76 | 0.28 - 1.0 |
| 6.35 | 0.28 - 1.50 |
| 9 - 9.52 | 0.26 - 1.50 |
| 15.88 - 16 | 0.41 - 1.80 |
| 22.22 | 0.89 - 2.0 |
| 12 - 12.7 | 0.34 - 1.50 |
| 7 - 7.94 | 0.28 - 1.50 |
| 19.05 | 0.71 - 2.0 |
| 3.8 | 0.28 - 0.60 |
| 5 | 0.25 - 1.0 |
| 28.58 | 1.2 - 2.0 |
C11000 H02 Annealed Tube Thermal Properties
| Treatment | Max | Min |
|---|---|---|
| Annealing | 1200 | 700 |
| Hot Working Temperature | 1600 | 1400 |
C11000 Seamless Tube
C11000 Copper Light Drawn Tube
UNS C11000 Light Annealed Tube
ASTM B152 C11000 Bright Annealed Tube

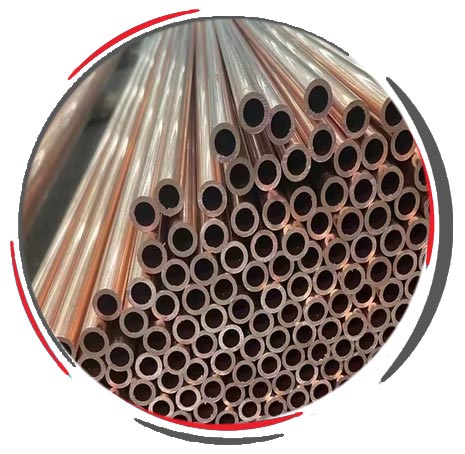

C11000 H02 Annealed Tube
UNS C11000 Copper Full Annealed Tube
Copper Alloy C11000 Hard Drawn Tubes
Copper Nickel Tube Fittings Supplier in India, offering superior resistance to corrosion, making it ideal for many applications
UNS C11000 Light Annealed Tube Price List
| Size | Price in USD |
|---|---|
| Od - 17 mm x 3 mm Wt | US $ 21.64 |
| Od - 1/4" x 0.36 Thk x 20 Swg | US $ 27.66 |
| Od - 19.05mm x 14 Bwg | US $ 12.36 |
| Dia. 50mm x 8Swg x 2Mtr. | US $ 15.81 |
| Od - 1/2" x 0.89 mm Thk | US $ 26.01 |
| 50mm x 8 Swg x 7 Mtr. | US $ 15.82 |
ASTM B152 C11000 Bright Annealed Tube Chemical Composition
Pure Copper
Oxygen
C11000 H02 Annealed Tube Mechanical Properties
| Temper | Sector Size | Type Min | Cold Work | Tensile Strength | Elongnation | Temp | YS 0.05% UL | RH B | RH F | RH 30T | Shear Strgth |
|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | ksi | F | ksi | B | F | 30T | ksi | ||||
| mm. | MPa | - | C | MPa | - | - | - | MPa | |||
| OS025 | 1.65 | TYP | 0% | 234 | 45% | 20 | 76 | - | 45 | - | 159 |
| H80 | 1.65 | TYP | 40% | 379 | 8% | 20 | 345 | 60 | 95 | 63 | 200 |
| OS050 | 0.06 | - | - | 32 | - | 68 | 10 | - | - | - | 22 |
| H55 | 1.65 | TYP | 15% | 276 | 25% | 20 | 221 | 35 | 77 | 45 | 179 |
| OS025 | 0.06 | - | - | 34 | - | 68 | 11 | - | - | - | 23 |
| OS050 | 1.65 | TYP | 0% | 221 | 45% | 20 | 69 | - | 40 | - | 152 |
| H80 | 0.06 | - | - | 55 | - | 68 | 50 | - | - | - | 29 |
| H55 | 0.06 | - | - | 40 | - | 68 | 32 | - | - | - | 26 |
C11000 Copper Tube Manufacturer in India, offering Material with Superior Resistance to Corrosion in both Fresh and Seawater
UNS C11000 Copper Full Annealed Tube Physical Properties
| Density | 0.322 Lb/In3 at 68 F |
|---|---|
| Modulas Of Elasticity In Tension | 17000 Ksi |
| Electrical Conductivity | 101%IACS at 68 F |
| Melting Point Liquid US | 1981 F |
| Melting Point Solid US | 1949 F |
| Modulas Of Rigidity | 6400 Ksi |
| Specific Heat Capacity | 0.092 Btu/Lb/°F at 68 F |
| Coefficient Of Thermal Expansion | 9.4 10-6Per °F (68-212 F) 9.6 10-6Per °F (68-392 F) 9.8 10-6Per °F (68-572 F) |
| Electrical Resistivity | 10.3 Ohms-Cmil/Ft at 68 F |
| Thermal Conductivity | 226.0 BTU In/Hr.Ft2.°F at 68 F |
| Specific Gravity | 8.91 |
Copper Alloy C11000 Hard Drawn Tubes Applicable Specification
| End Product | Specification's |
|---|---|
| Welded, Tube | ASTM B447 |
| Bus, Pipe | ASTM B188 |
| Bus, Tube | ASTM B188 |
| Specifications for Australian | |
| AS1572 | For Engineering Purposes |
| AS1569 | For Eat Exchangers |
| AS1571 | For Refrigeration & Air Conditioning |
UNS C11000 Seamless Tube Equivalent Grade
| Stamdard | IS | ASTM | BS | JIS | DIN | EN | ISO |
|---|---|---|---|---|---|---|---|
| Electrolytic Tough Pitch | IS 6912 - ETP S191 - CuETP |
C11000 | C101 | H3250(92) - C1100 BE | 2.006 | CW004A | R1337 - Cu |
C11000 Copper Tube Manufacturer in India, at Custom Sizes at Valuable Prices
| Specifications | Designation |
|---|---|
| Europen | Cu-ETP |
| BS | Cu-ETP-2 |
| JIS | C-1100 |
| ISO | Cu-ETP |
| Russian | MO |
| Copper C110 | Copper C11000 |
|---|---|
| 100% Conductivity | 97% Conductivity |
| Use for Plumbing Fixtures & Heat Exchangers | Use in Wiring & Electrical Connectors |
| More Expensive | Less Expensive |
| 99.99% Copper | 99.90% Copper |
| Known as ETP Copper | Known as OFE Copper |
UNS C11000 Light Annealed Tube Fabrication Properties
| Joining Technique | Suitability |
|---|---|
| Weld Spot | Not Recommended |
| Weld Butt | Good |
| Welding Gas Sheilded Arc | Fair |
| Brazing | Good |
| Welding Coated Metal Arc | Not Recommended |
| Rating Forgeability | 65 |
| Rating Machinability | 20 |
| Welding Seam | Not Recommended |
| Capacity of Being Cold Worked | Excellent |
| Capacity of Being Hot Formed | Excellent |
| Welding Oxyacetylene | Not Recommended |
| Soldering | Excellent |
ASTM B152 C11000 Bright Annealed Tube HSN Code
| Grade | HSN Code |
|---|---|
| C11000 Copper Tube | 74111000 |
Applications for C11000 Copper Tube
C11000 Copper Tube Supplier in India, known for providing high-temperature resistant that perform well in heat applications.
UNS C11000 Copper Full Annealed Tube Features
Copper Alloy C11000 Hard Drawn Tubes Fabrication Processes
Top Advantages for Buyers to purchase C11000 Copper Tube from India
